Drawer Filter Magnets

Drawer Filter Magnets are equipped with powerful magnetic cartridges to extract ferrous particles in gravity flow or free-fall applications and are able to withstand temperatures up to 80°C without compromising magnetic efficiency.

  • High-efficient Rare Earth Neodymium magnets
  • Withstand temperatures up to 80°C without compromising magnetic efficiency
  • Welded 3mm Stainless Steel housing to support symmetrical compression loads up to 4500kg
  • Fully automated cleaning options with control package available
  • Custom-made flanges to suit your application for easy installation

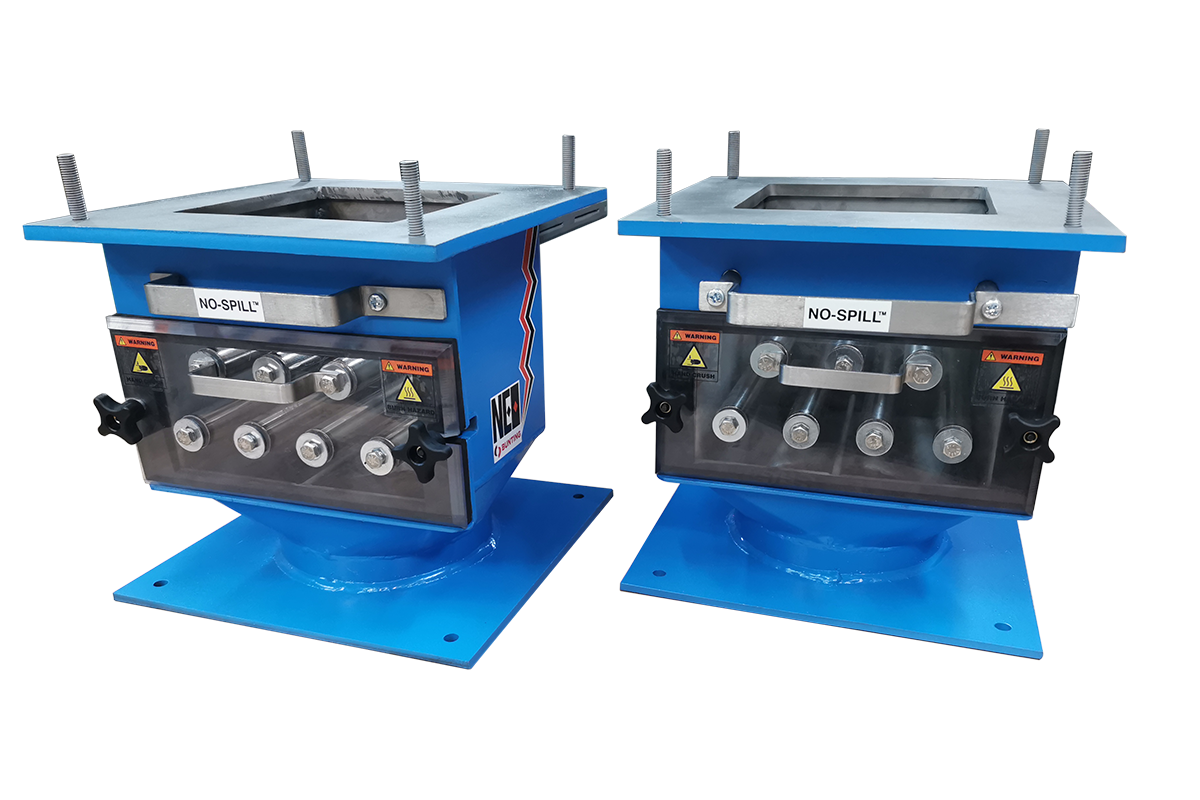

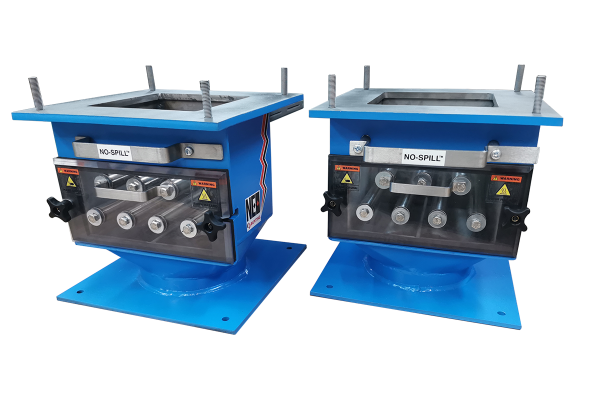

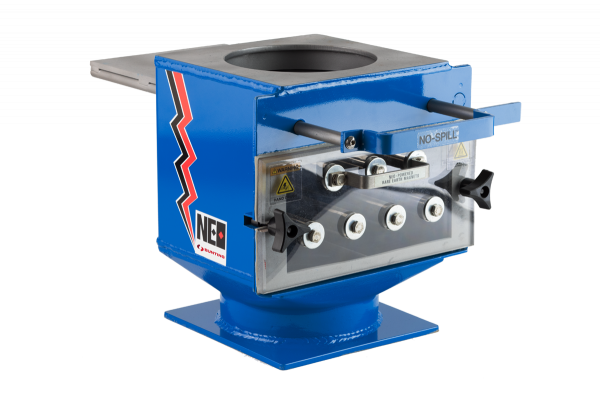

FF Series Drawer Filter Magnets

  • High Strength Neodymium Rare Earth Magnets with our unique temperature compensated design, for superior high temperature operation
  • High Strength, fully welded 3mm Stainless Steel Body, capable of symmetrical compression loads of 4500kg.
  • Patented “No Spill” Slide Gate, completely shuts off product flow for safe and clean removal of the drawer for cleaning.
  • Flanges customised to customers own needs, for fast simple fitting.
  • Range of optional extras, Standard Units Ex-Stock
  • Designed to compliment the Bunting Magnetic MMS Metal Detector and can be supplied as turnkey cleaning station.

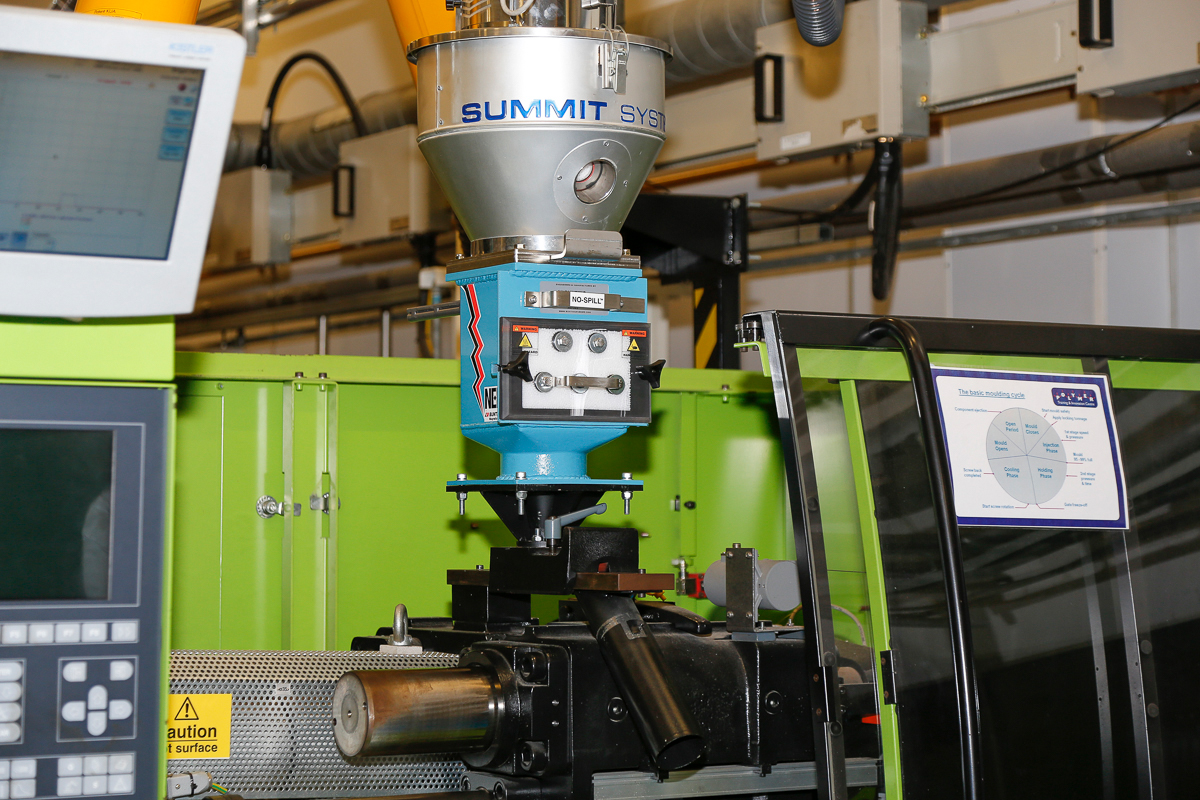

Bunting’s FF Series Drawer Magnets are perfectly suited for collecting and separating contaminant ferrous metal from gravity fed, dry, free flowing materials. Housed inside are the extremely strong Neodymium Rare Earth Magnets which do the capturing and holding of the tiny pieces of ferrous metal contaminant. Made specifically for the plastics industry, this is the only available drawer magnet design (exclusive to Bunting) that features temperature-compensated rare earth magnets. With that benefit on board, they are compatible with high temperature (up to 80°C) machines like extrusion, injection and blow moulding machines while still maintaining a maximum pulling power. Guaranteeing a level of durability and a reduction in downtime, this particularly impressive series of drawer magnets has been a leader in the industry for more than 40 years.

Featuring a 3mm stainless steel , fully welded , housing which has been built in order to support symmetrical compression loads of 4,536 KG. The draw gasket which is designed to resist heat aging and compression set is cut from Ethylene Propylene Diene (EPDM) and allows for greater durability.
Although entirely optional, the ability to order the FF Series Drawer Magnets with either a self-cleaning or continuously self-cleaning option means that any production downtime can be reduced significantly. A detachable tramp tray, which comes as part of the self-cleaning model, means that spillages and clean-ups can largely be avoided.

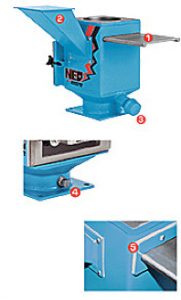

FF Series Options include:

    • Drawer Filter Magnets

      Choose from either square or round spouting transition to make installation easier

    • No-Spill Side Gate (1) – This effectively switches off the product flow. When the drawer is then removed for routine inspection or cleaning there are no concerns regarding health and safety or spillages.
  • Purge Hopper (2) – This is put into use when changing colour or compound. It means the equipment can be cleaned without the need to empty the hopper. This will also mean that magnetics protection won’t be sacrificed.
  • Dump Tube (3) – Designed to totally empty the draw housing and the material hopper once a plastic run has been completed.
  • Liquid Port (4) – This port essentially has a dual purpose. It can hold a temperature probe but primarily it provides a means to inject liquid colour additive into resin.
  • Powder Seal Kit (5) – Limits any leaking of powdery materials by putting a compression seal around the slide gate.



FF Series Options

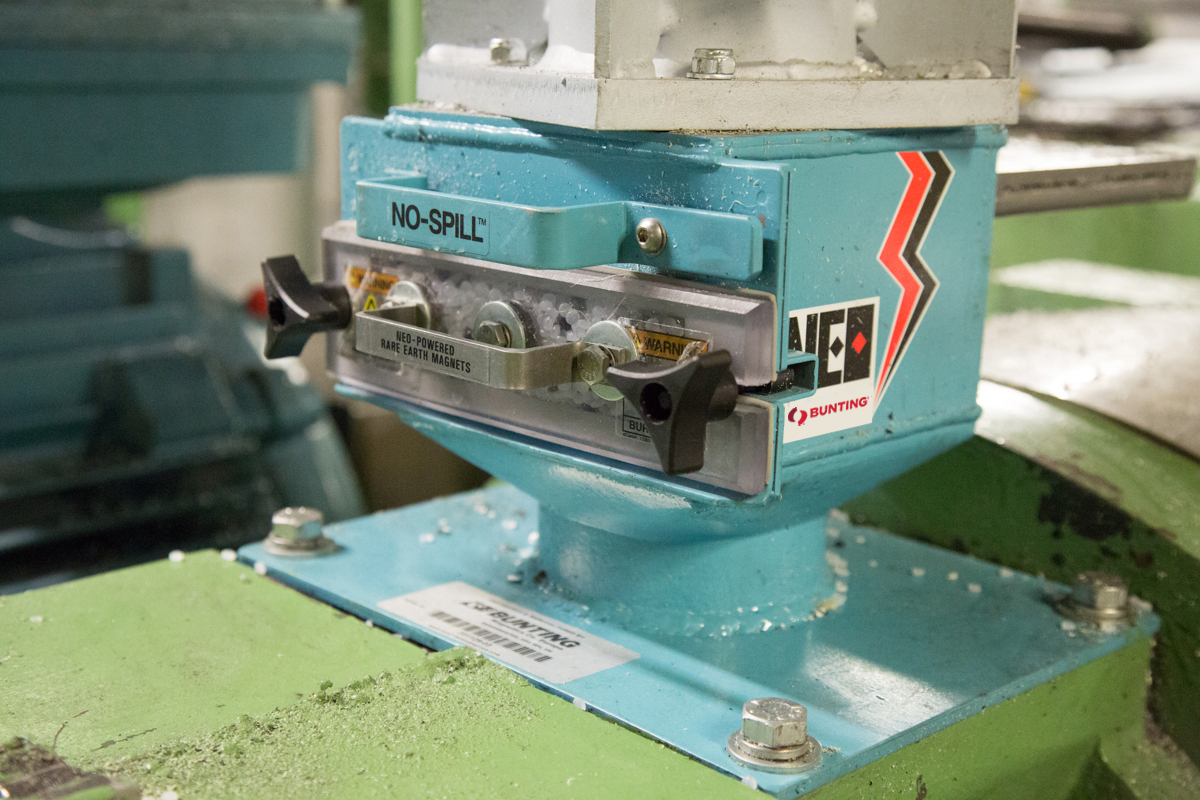

Low Profile Drawer Filter Magnets

  • Perfect for limited headroom applications
  • Just 145mm High
  • Featuring a single row of High Intensity Neodymium Magnets
  • Clear Polycarbonate drawer front
  • Also available in Stainless Steel

Self-Cleaning Drawer Filter Magnets

  • NO wiping or Brushing Required!
  • Available as Manual and Pneumatic operation

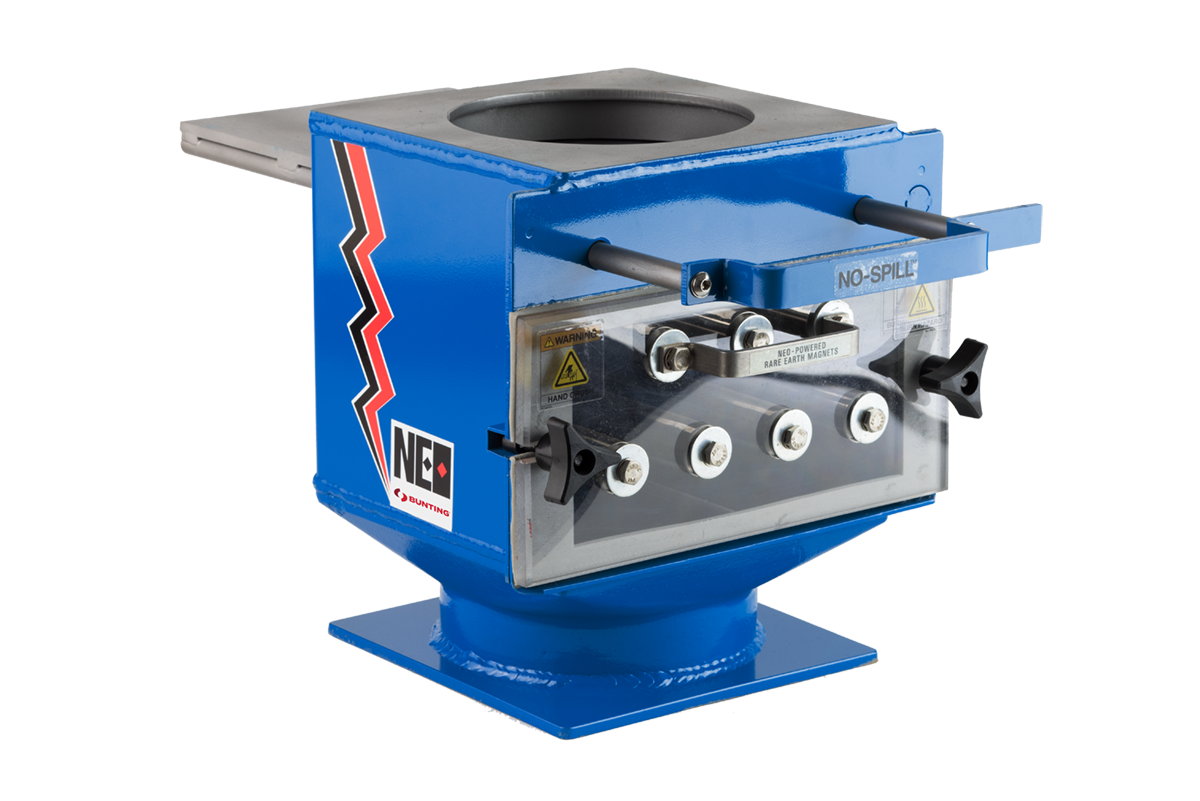

Powder FF Drawer Filter Magnets for Fine-Grained Resins

  • Specially modified for separation application from fine grained resins and powders

FFV Drawer Filter Magnets

  • Manufactured to withstand pressures up to 15 in-hg without leaking
  • 13mm Clear Polycarbonate drawer front for strength and easy monitoring
  • Compact Housing of just 70mm x 70mm
  • Available in Mild and Stainless Steel
  • High Intensity Neodymium Magnets

HF Series Options

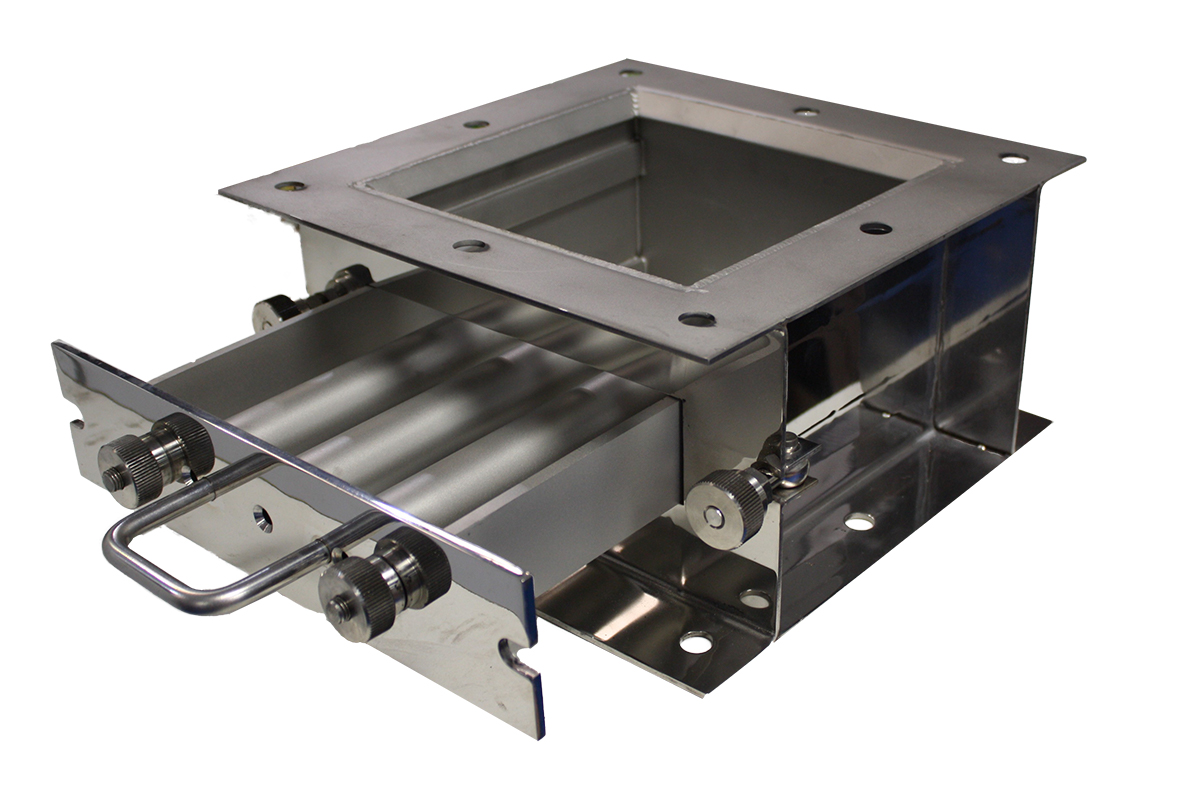

HF Series Drawer Filter Magnets

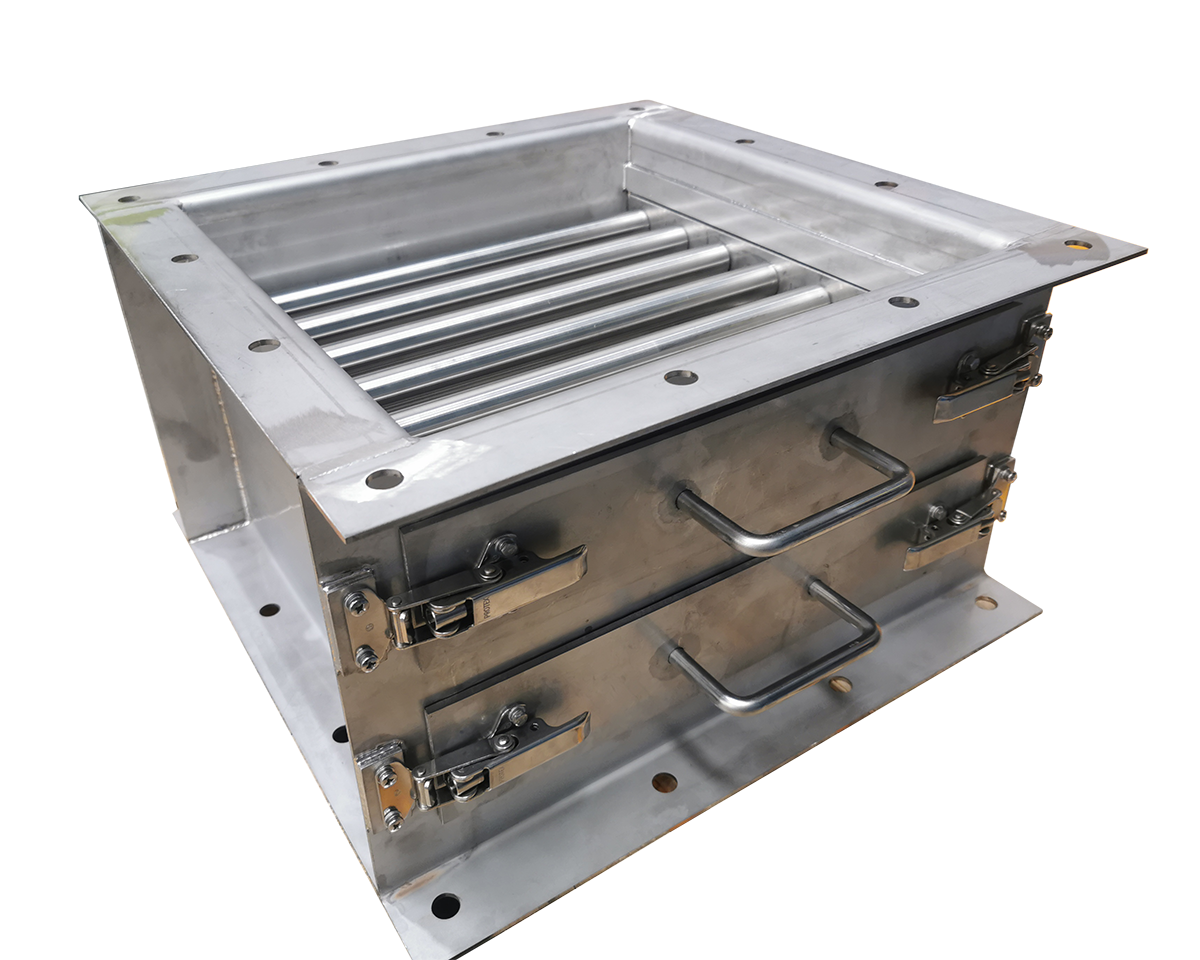

HF Drawer Magnet

  • For Gravity Flow Applications in All Industries
  • Outstanding magnetic separation, with various magnetic configurations for all types of gravity flow applications.
  • Configurable design to suit the flow of materials and separation required.
  • High-duty construction for long life.
  • Extensive range of sizes, magnet types and finishes available.
  • Easily fitted into existing systems, optional top and bottom transitions are available.
  • Food Grade available.

Bunting HF Series Drawer Magnets are equipped with powerful magnetic cartridges to handle a wide range of separation tasks in mechanical or gravity flow applications and have been specifically designed to remove and hold metal contaminants from gravity, free-flowing or mechanical-fed materials that are inside enclosed flow lines. They can be used for various applications in other industries, such as pharmaceuticals, grain, powders, plastics and food. Multiple grades of Bunting Magnetics magnetic cartridges are built into the design of these particular magnets and can be tailored to individual site requirements.

To increase the level of contact with the product stream, which in turn increases the level of separation possible, the HF Series Drawer Magnets can be arranged with two or more trays of staggered cartridges. As the product in question goes into the HF Drawer Magnet, any ferrous metal contaminants are attracted and then collected by the strong magnetic cartridges. The magnetic field then holds these contaminants in place until cleaning takes place.

HF Drawer Magnets are pretty flexible, so that several options can be applied. Choose from a standard or sanitary construction; they are also available with rare earth, Alnico or Ceramic magnets.

They can be configured with two or more cartridge trays arranged so that the cartridges are staggered to increase contact with the product stream. The material moves in a zig-zag pattern from one cartridge tray to the next for comprehensive cleaning. HF Drawer Magnets are available in utility, food, and sanitary construction grades with multiple cleaning options and stainless steel housings. We supply custom transitions to match your round, square, or rectangular spouting.

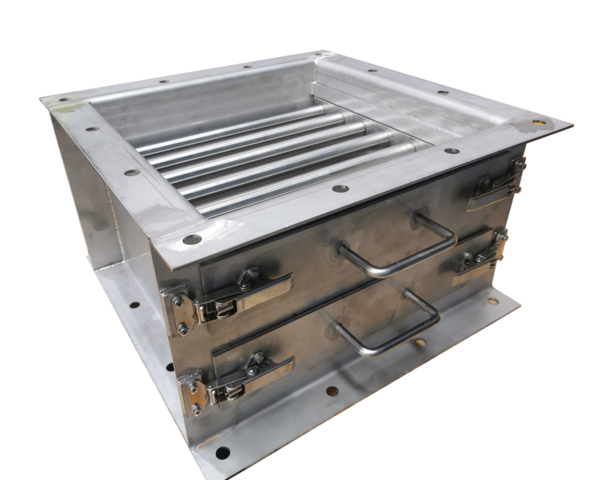

Manual Standard HF Drawer Magnet

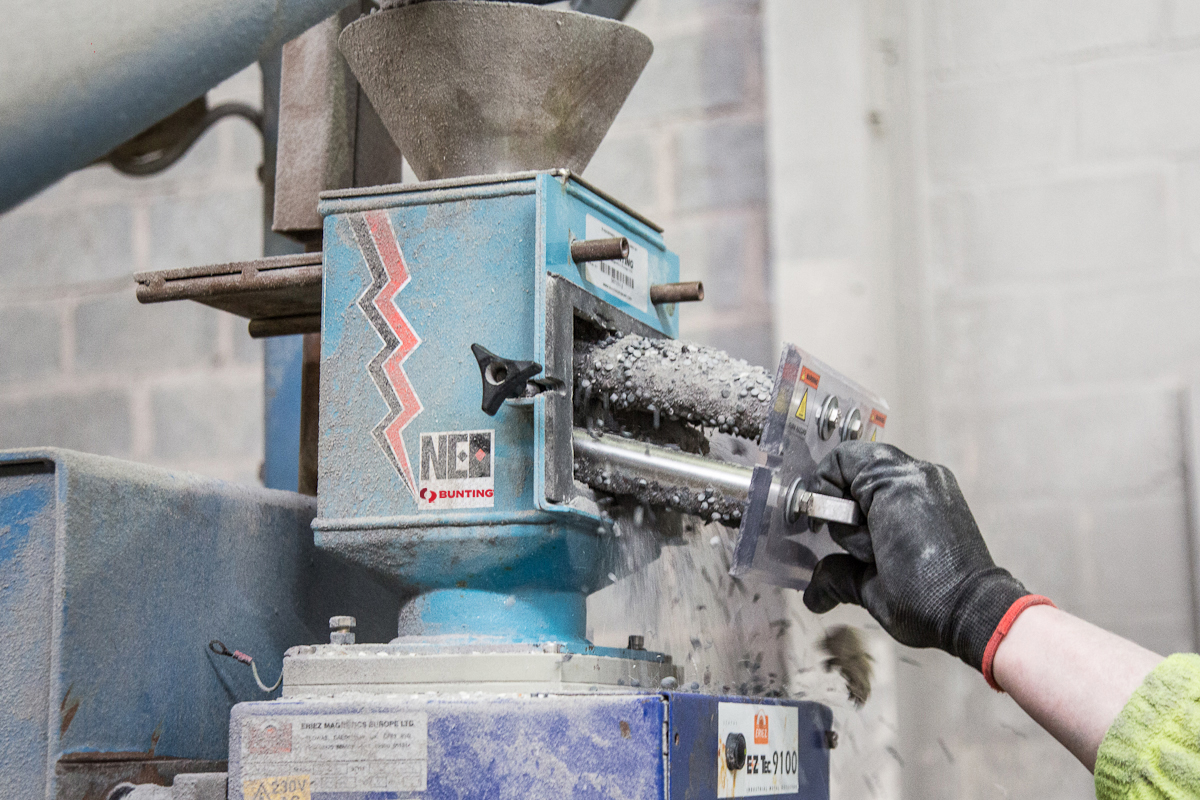

In the standard configuration, ferrous debris is removed from the cartridges by sliding the trays out of the housing and wiping them off by hand. Single and Double row heights are standard , but up to 5 rows can be incorporated. Magnet spacing of 75mm is also available for products that easily bridge.

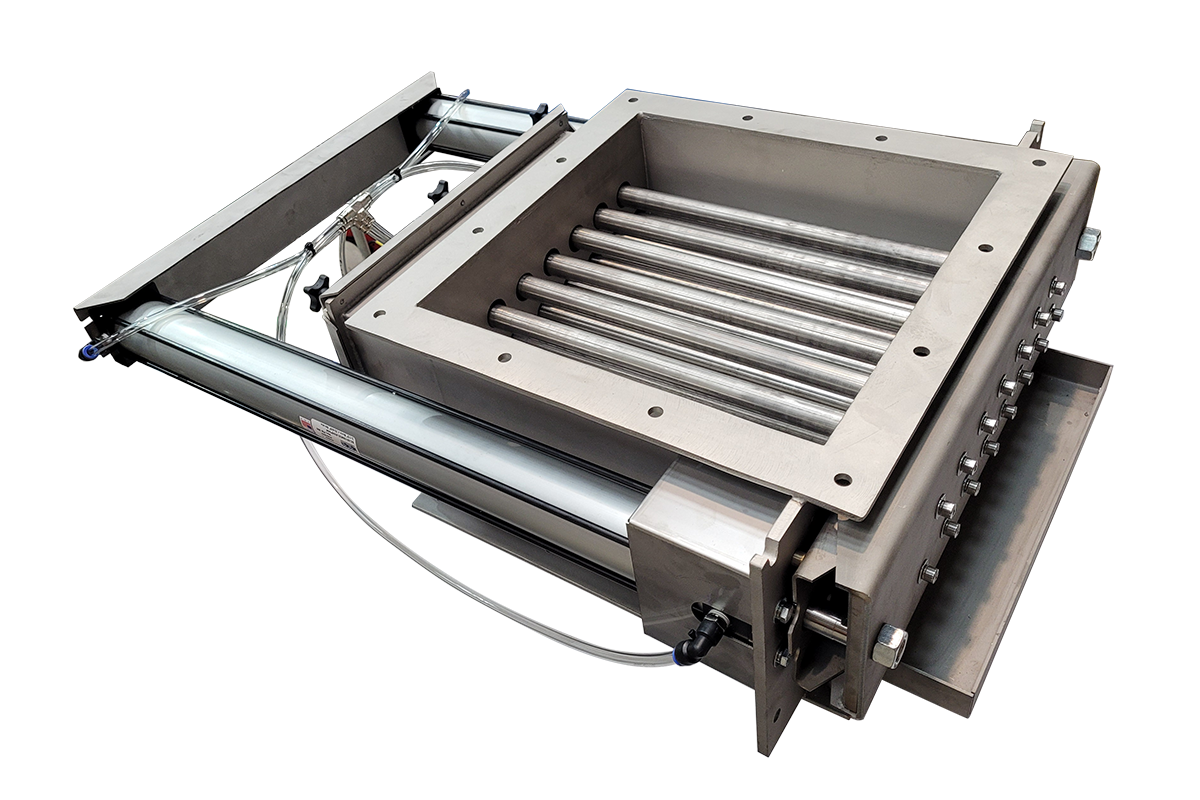

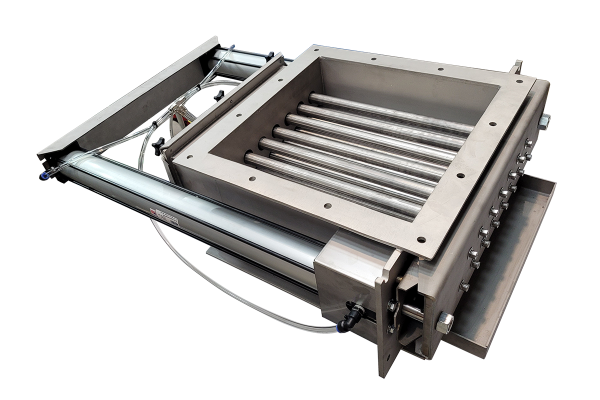

Manual Self-Cleaning HF Drawer Magnet
Self-Cleaning HF Drawer Magnets are designed for maximum magnetic strength , which a tube over tube design does not allow. The extend high intensity magnetic cartridges are pulled outside the housing, where Bunting Magnetics high performance grommets wipe the tubes clean all the way to their nonmagnetic tapered ends. This ensures that each cartridge is fully cleaned  and prevents captured tramp iron from re-entering the product stream.


Pneumatic Self-Cleaning HF Drawer Magnet
Pneumatically powered cleaning mechanism releases ferrous contaminants into the discharge area automatically. Pneumatic units can be installed in hard-to-reach locations because they operate at the touch of a remote switch or by a Bunting-engineered automated control package. With this model, product flow must be stopped to clean cartridges and prevent contaminated products from flowing into product stream.


Pneumatic Continuous Self-Cleaning HF Drawer Magnet
Because of the special drawer design, the product continues to flow while magnets are being cleaned. There is no need for a gate to stop product flow. Each row of magnets are cleaned in an alternating pattern allowing the product to remain in contact with a row of magnets at all times. This unit operates by remote switch or by a Bunting-engineered automated control package allowing it to be installed in hard-to-reach locations.
